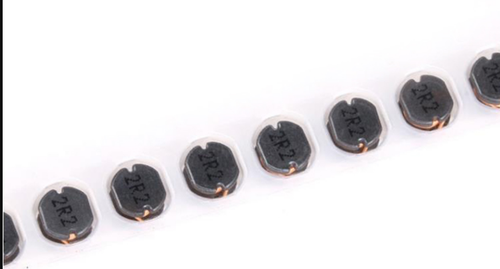

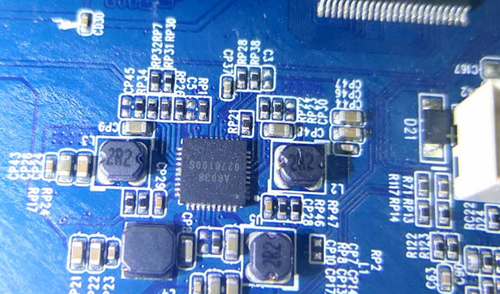

CD32 2.2UH 2R2 SMD wire wound inductors, also known as power inductors, high current inductors, and surface mount high power inductors. The size of the inductor is 3*3.5*2mm. It has the characteristics of miniaturization, high quality, high energy storage, and low resistance. It is usually used to replace faulty Whatsminer CB4-V10 control board components.

Product parameter:

Part number: CD32-2R2M

Inductance: 2.20uH

Test Freq.: 100KHz

DCR(max): 0.085Ω

IDC(max): 1.60A
