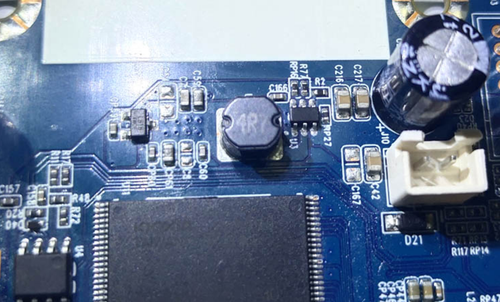

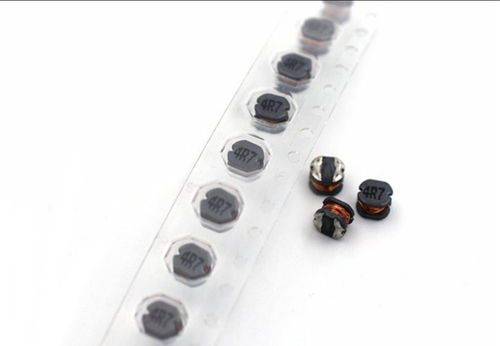

CD54 4.7UH 4R7 SMD inductors are high-power SMD inductors on the Whatsminer CB4-V10 control board. Its size is 5*5*4. It has the characteristics of miniaturization, high quality, high energy storage, and low resistance.

Product features:

All kinds of high-power inductors are better than high-saturation surface mount

High heat resistance and excellent solderability

A wide range of applications is suitable for video recorder power supply, notebook computers, portable communication equipment, DC/DC converter, CB4-V10 control board, etc.

Specification:

Type: CD54

Structure: Surface mount power inductor

Surface Coating: Nickel

Working temperature: -40°C to +85°C

Storage temperature: -55°C to +125C

Insulation resistance: 100MOhm.100V terminal-core

Dielectric Strength: 250Vac terminal-core

Humidity effects:

L+5@95%RH,40°C1HR

Q±5@95%RH,40°C1HR

Packing: 1500PCS/REEL

Tag: 3 character value

Note: Tolerance K=10%; M=20%.
