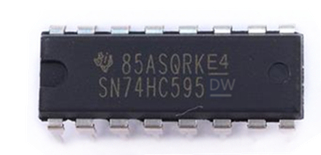

SN74HC595DW

SN74HC595DW has parallel three-state output. Separate clocks are provided for the shift register and storage register. The shift register has direct overwrite clear input, serial input and serial output for cascading. When the OE\ input is high, the output is in a high impedance state.

Logic series/base: 74HC595

Shift register function: serial to parallel

Number of elements: 1 element

Number of bits per element: 8 bits

Logical case style: integrated circuit

Number of pins: 16 pins

Minimum power supply voltage: 2V

Maximum power supply voltage: 6V

IC output type: Three states

Logic IC series: 74HC

Logic IC base: 74595

Minimum working temperature: -40°C

Maximum working temperature: 85°C
