PIC16F1705 Advanced Analog Flash Microcontrollers PIC16(L)F1705/9 microcontrollers combine Intelligent Analog integration with low cost and extreme low-power (XLP) to suit a variety of general-purpose applications. This 14 -pin device delivers on-chip Op-Amps, Core IndependentPeripherals (CLC and COG), Peripheral Pin Select and Zero-Cross Detect, providing for increased design flexibility.

Features:

C Compiler Optimized RISC Architecture

Only 49 Instructions

Operating Speed:- 0-32 MHz -   125 ns minimum instruction cycle

Interrupt Capability

16-Level Deep Hardware Stack

Four 8-bit Timers

One 16-bit Timer

Power-on Reset (POR)

Power-up Timer (PWRT)

Low-Power Brown-Out Reset (LPBOR)

Programmable Watchdog Timer (WDT) up to 256s

Programmable Code Protection

Operating Voltage Range: 2.3V to 5.5V

Specification:

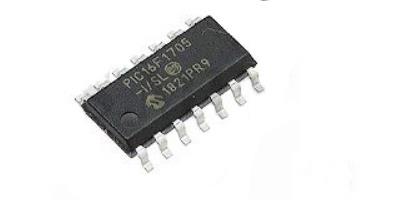

Model: PIC16F1705-I/SL

Product Category: Pic16 Series SMD

Mounting Type: SMT

Pack/Box: SOIC14/3.90mm

Memory Type: FLASH

Number of Bits: 8-Bit

Speed: 32MHz

Program Memory Size: 14KB (8K*14)

RAM Size: 1K*8

Number of I/O: 12

Supply voltage: 2.3V ~ 5.5V

Operating temperature: -40°C ~ +85°C
