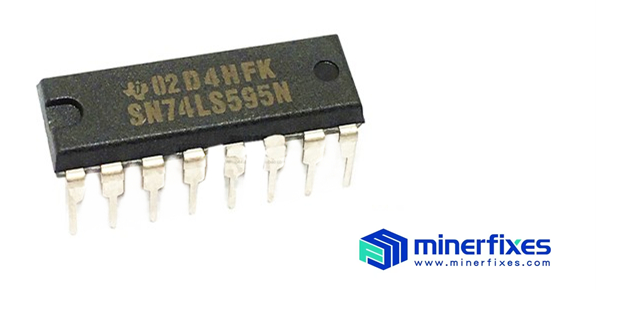

SN74LS595N

SN74LS595N has parallel three-state outputs. Provide separate clocks for shift registers and storage registers. The shift register has direct overwrite clear, serial input, and serial output pins for cascading. Both the shift register and storage register clocks are triggered on a positive edge. If the user wants to connect the two clocks together, the shift register state will always be one clock pulse earlier than the storage register.

Logic series/base: 74LS595

Shift register function: serial to parallel

Number of elements: 1 element

Number of bits per element: 8 bits

Logical case style: dip

Number of pins: 16 pins

Minimum power supply voltage: 4.75V

Maximum power supply voltage: 5.25V

IC output type: Three states

Logic IC series: 74LS

Logic IC base: 74595

Minimum working temperature: 0°C

Maximum working temperature: 70°C
