【Water cooling】Single/Two-story Project

Product detail

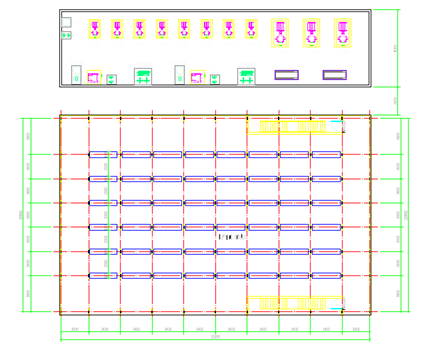

First Floor Plan

Single-story Specifications
No. of Floors	1
Single-story factory area	720 m2
Number of transformers	3
Single factory power capacity	9 MW
Rack quantity	48
Miners capacity	5760

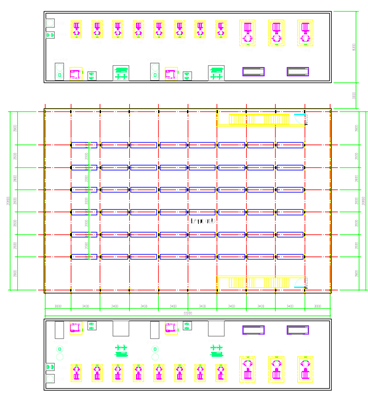

  First-Floor Plan

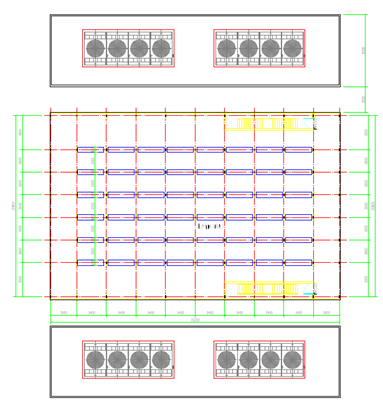

  Second-Floor Plan

Two-story Specifications

No. of Floors 2

Single-story factory area 1440 m2

Number of transformers 6

Single factory power capacity 18 MW

Rack quantity 96

Miners capacity 11520

Standardized system:

1. ANTBOX standardized design (standardization of external dimensions, standardization of structural combination)

2. Standardization of cold source system (configure modular cold source system, modular system is independent of each other to ensure a stable and reliable system. Contains cooling tower, plate heat exchanger, circulating pump, etc.)

3. Standardization of electrical system (modulation of electrical system, each module is independent of each other to ensure a stable and reliable system.)

Contact us for customized plan.

Two-story Specifications
No. of Floors	2
Single-story factory area	1440 m2
Number of transformers	6
Single factory power capacity	18 MW
Rack quantity	96
Miners capacity	11520
