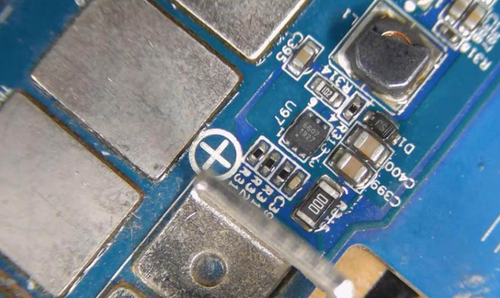

SGM6607 high voltage boost converter for Avalon hash board repair The SGM6607YTDI6G/TR is a high voltage switching regulator. It integrates a 40V low-side MOSFET to offer an output voltage of up to 38V. Often used for repair and replacement of hash board boost chips for Avalon miners. It also accepts a wide input voltage range of 3V to 20V from multi-cell batteries or regulated 5V/12V power rails. A 1.2MHz switching frequency makes the use of low-profile inductors and low-value ceramic input and output capacitors available. The device supports boost, SEPIC, and some other standard switching-regulator topologies. The device regulates the output with PWM (pulse width modulation) control. This device also includes the built-in functions of output over-voltage protection, over-current limit, soft-start, and thermal shutdown.

The SGM6607YTDI6G/TR is available in Green TDFN-2×2-6L packages and is rated over the -40℃ to +85℃ temperature range.
