TLV61048

TLV61048 can be configured as 600 kHz for higher efficiency, or as 1 MHz for smaller inductors and output capacitors. At light loads, the device enters PFM operation to achieve higher efficiency. TLV61048 has a built-in 2 ms soft start to minimize inrush current.

Input voltage 2.65 V to 5.5 V (down 2.4 V)

Output voltage up to 14 V

Integrated low-side FET: 85 mΩ at 3.3 V IN

3.7A (typical) switch current limit

Up to 90% efficiency at 3.3V input and 12V output

600kHz or 1MHz selectable switching frequency

Internal compensation

1µA shutdown current

±2.5% output voltage accuracy

PFM operation mode at light load

Internal 2 ms soft start time

Thermal shutdown protection

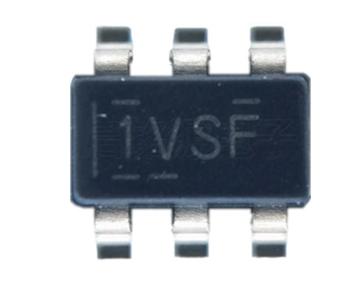

2.9mm × 1.6mm 6-pin SOT-23 package
