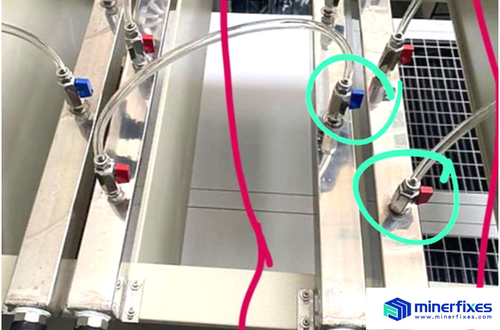

The 304 stainless steel pagoda ball valve is used to fix the water pipe between the water-cooled plate and the water-cooled plate to ensure that the water-cooled liquid does not leak out. Its stainless steel material is more resistant to chemical corrosion, not easy to rust, and its structure is very compact, compressive and durable, which is very suitable for the application of water cooling

Product features:

1) It is made of 304 stainless steel, with stable performance, corrosion resistance and wear resistance, and long service life;

2) The valve body is precision-cast, with clear writing on the surface and accurate material marking, making it easier for parents to use;

3) Precise thread, not easy to slip, strong sealing performance, water-proof;

4) The valve body is thickened to increase the bearing pressure by one level under the same pressure bearing conditions, making the safety more secure.

Product parameter:

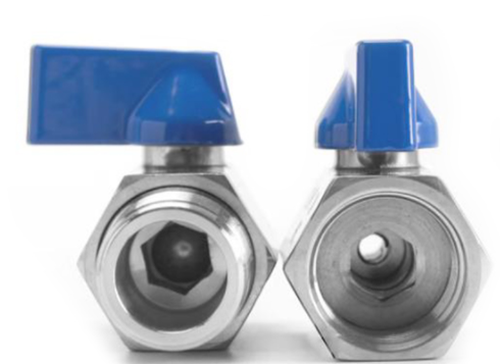

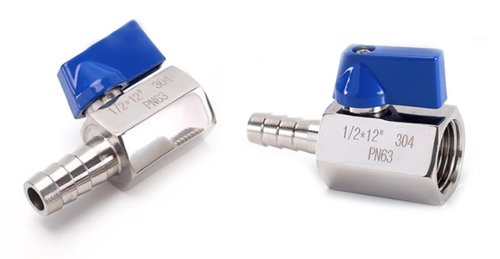

Product name: mini ball valve

Valve body material: CF8(SS304)

Seal material: PTFE

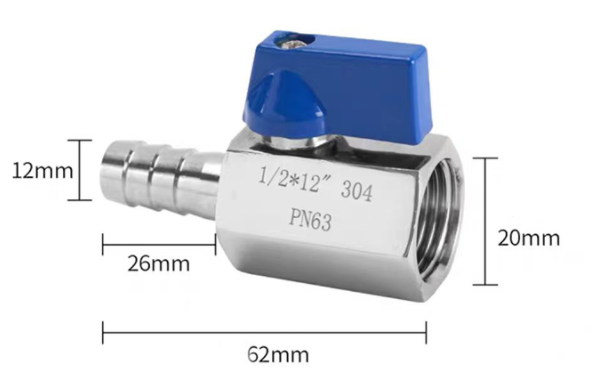

Size: 1/2*12"

Normal pressure: 1.6MPa~6.4MPa

Media: Water, Oil, Gas

Working temperature: -20℃ to 180℃
