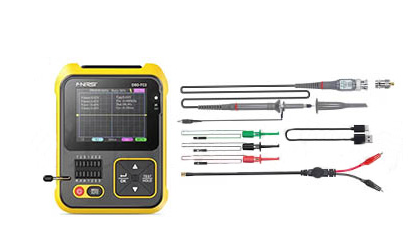

Handheld oscilloscope transistor tester DSO-TC2 is suitable for Hash board. It is a two-in-one oscilloscope and transistor detection all-in-one machine. With extremely small size and powerful functions, powered by lithium batteries. Support PWM square wave output, transistor test, folding bracket, 2.4-inch high-definition screen. Automatically identify and measure a variety of transistors, including NPN and PNP transistors, N-channel and P-channel MOS, junction field effect transistors, diodes, thyristors, and components such as resistors, capacitors, and inductors. Automatically detect pin definitions, automatically parse the infrared code of NEC protocol, including circuit continuity test, 0-16V voltage input measurement, PWM output, 0-24V Zener diode measurement, DS18B20 temperature sensor measurement, DHT11 humidity sensor measurement.

Function:

Real-time sampling rate 2.5MS/s, bandwidth 200KHz,

With full trigger function (single, normal, automatic)

Measures voltages up to 400V

Efficient one-button automatic, simple adjustment can display measurement waveform

Comes with adjustable 80KHz/5.0V PWM wave test signal source
