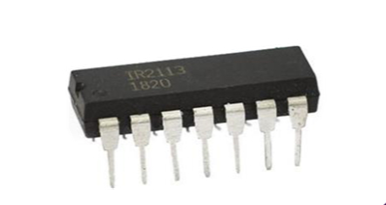

IR2113PBF

Dual Power IC, High Side And Low Side, 10V-20V Supply, 2.5A Out, 94ns Delay, DIP-14

IR2113PBF is a high-voltage high-speed power MOSFET and IGBT driver with independent high-side and low-side reference output channels. Proprietary HVIC and latch immune CMOS technology can realize a rugged and durable monolithic structure.

1. Tolerate negative transient voltage DV/DT immunity

2. Undervoltage lockout of two channels

3. CMOS Schmitt trigger input with pull-down function

4. Cycle-by-cycle edge-triggered shutdown logic

5. Matched propagation delay of the two channels

6. The output is in phase with the input
