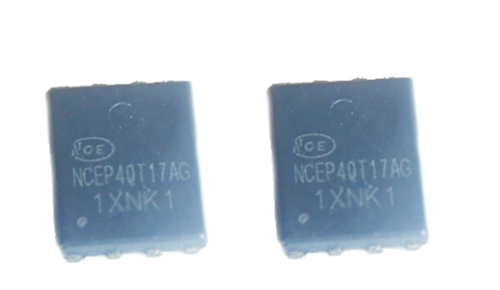

The NCEP40T17AG features a uniquely optimized Super Trench technology that provides the most efficient high frequency switching performance. Both conduction and switching power losses are minimized due to the very low combination of RDS(ON) and Qg. The device is ideal for high-frequency switching and synchronous rectification.

eatures:

• VDS =40V, ID =170A

RDS(ON)=1.4mΩ (typical) @ VGS=10V

• Excellent gate charge x RDS(on) product(FOM)

• Very low on-resistance RDS(on)

• 150 °C operating temperature

• Pb-free lead plating

• 100% UIS tested
