Product detail
Product description:

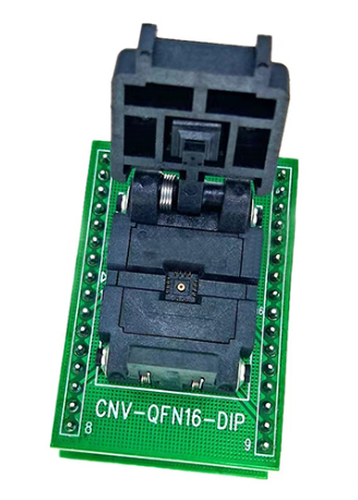

QFN16/QFN3X3-16L(0.5)/DFN16 IC chip burn-in test socket, programming socket, suitable for 0.5 mm pitch, 3*3mm size chip.
Product parameter:
Structure: with folding
Contacts: beryllium copper alloy.
Contact Plating: gold over nickel
Operation force: max. 2.0 kg.
Contact resistance: max. 50 MOhm.
Insulation resistance: 1000 Mohm min.
Current: max 2A
Operating temperature: -40 ~ + 150℃.
Operating life: 15,000 switching cycles
Use method:

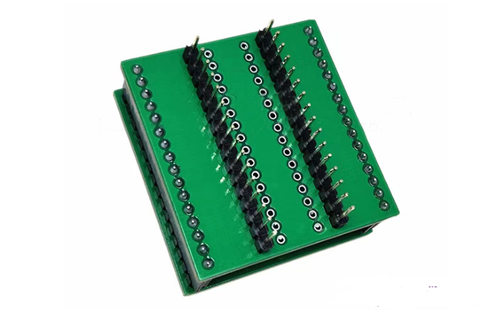

Mount into an adapter.
Mount on a test board
Mount and make a test jig
