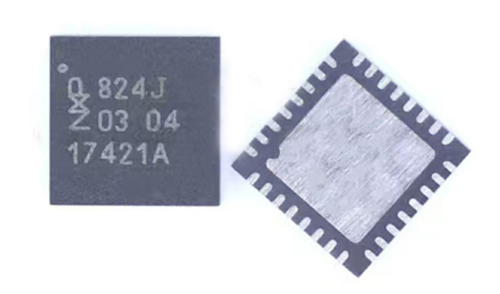

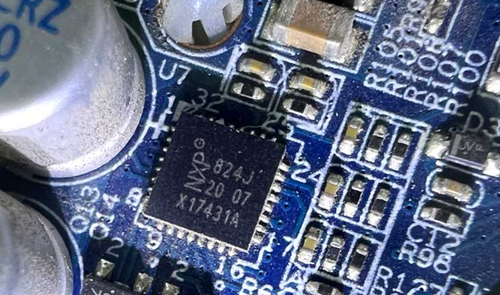

LPC824M201JHI33E is a microcontroller on Avalon 841 PMU board with a larger memory footprint, doubled maximum flash and SRAM size, 18-channel DMA, more I2C serial interfaces, and 12-bit 1.2Msps ADC. The controller offers three select peripherals to transition into the 32-bit space easily. The switch matrix allows designers to map pins accordingly to simplify the routing of components on the PCB. Another controller feature is SCTimer, which can be configured to generate various timing or PWM waveforms without CPU intervention. To simplify serial communication requirements, the pattern match engine can be configured to generate interrupts via user-configurable Boolean operations on its eight pins.

Product features:

• Sensor gateway

• Communication interfaces for wireless protocols such as NFC, BTLE, Zigbee, or WiFi

• Human Machine Interface (HMI) tasks such as touch, gesture, swipe

• Battery-powered equipment

• Space-constrained design

• Simple protocol bridging

• Replace 8/16 bit applications

• Supported by MCUXpresso SDK, IDE and configuration tools

Application:

Avalon 841 PMU

Three-phase AC induction motor

Brushless DC Motor (BLDC) Control

Permanent magnet synchronous motor (PMSM)

Smart power outlets and light switches
