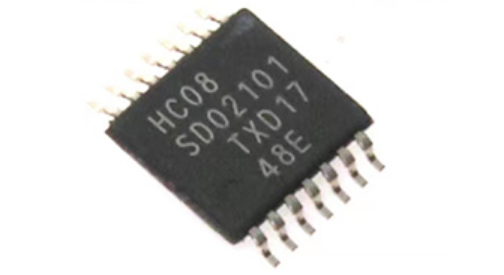

The 74HC08 is a quad 2-input AND gate. The input includes clamping diodes. This enables a current-limiting resistor to connect the input to voltages above VCC, and it is a high-speed silicon-gate CMOS device and is pin-compatible with low-power Schottky TTL (LSTTL). It is located on the Whatsminer CB4-V10 control board.

Features and benefits:

• Complies with JEDEC standard JESD7A

• Complies with JEDEC standard JESD8-1A

• Input levels:

  For 74HC08: CMOS level

  For 74HCT08: TTL level

• ESD protection:

  HBM JESD22-A114F exceeds 2 000 V

  MM JESD22-A115-A exceeds 200 V

• Specified from -40℃ to +85℃ and from -40℃ to +125℃
