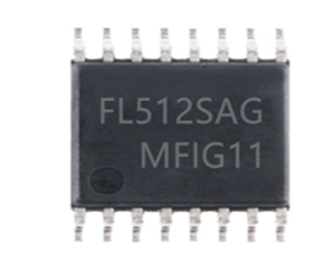

S25FL512SAGMFIG11

S25FL512SAGMFIG11 is a flash non-volatile memory connected to the host system through a serial peripheral interface. Supports traditional SPI unit serial input and output and optional two- and four-bit serial commands. This multi-width interface is called SPI Multi-I/O or MIO. In addition, the FL-S series adds support for SIO, DIO, and QIO double data rate read commands, which transmit addresses and read data on both edges of the clock.

1. SPI clock polarity and phase mode 0 and 3

2. Common Flash Interface (CFI) data for configuration information

3. Programming (1.5Mbytes/s)

4. Erase (0.5 to 0.65Mbytes/s)

5. Program erase cycles on 100,000 typical sectors

6. 20-year typical data retention
