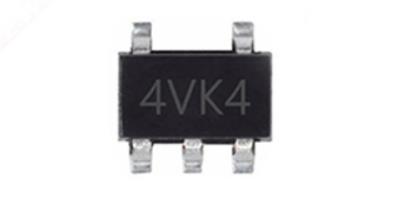

LN1134A182MR-G 4VK4

Low withstand voltage 1.8V LDO chip

Hash board voltage domain current stabilization IC

It is a regulated LDO tube for hash board repair.

Please check the signal of the hash board chip by yourself before making a purchase.

Model: 4VK4

Type: Voltage Regulator IC

Product Index:

Working voltage=2.0-7.0V

Output current=300mA

Static power consumption=70uA

Ripple rejection ratio=70@10KHz(dB)

Package form: SOT-23-5, SOT-353

Features:

1. The output voltage can be selected: can be selected in the range of 1.0 ~ 5.0V

2. High output voltage accuracy: accuracy can reach ±2.0%

3. Low input and output voltage difference: 300 mV typical (products with 3.0V output, when IOUT=100mA)

4. High ripple rejection ratio: 70dB (10 kHz)

5. Low current consumption: 70μA typical

6. Maximum output current: 300mA can be output (VIN≥VOUT+1v)

7. Standby current: less than 2μA

8. Built-in protection: built-in over-current protection

9. Built-in drain pipe

Package:

1. SOT-23-5L

2. USP-6B(DFNWB1.8×2-6L)

3. SOT-353/SC70-5

4. SOT-343
