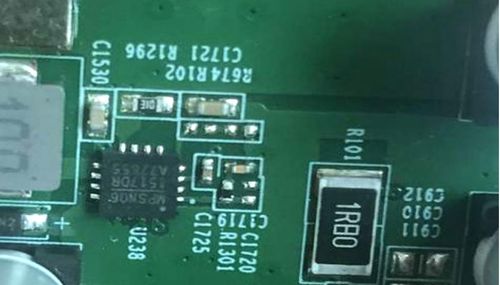

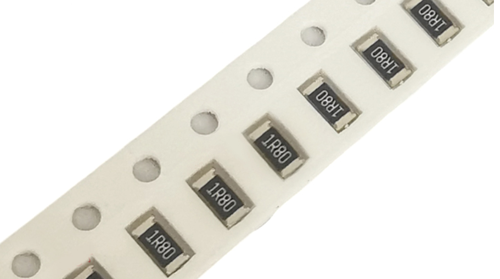

1R80 SMD 1206 resistors are 1.8R resistors printed by screen printing. It is located on the Antminer S19 hash board, which is resistant to moisture, and high temperature, and has a small temperature coefficient, which can greatly save circuit space costs and make the design more refined.

Product parameters:

Resistance: 1.8Ω

Rated power: 1/4W

Tolerance: 1%

Maximum working voltage: 25V

Maximum overload voltage: 50V

Temperature Coefficient: -200 ~ +600ppm/°C

Operating temperature range: -55°C to +155°C

Applications:

• Portable Devices

• Measurement instrument

• Consumer Electronics

• Computer / Motherboard
