Network cable tester / Ethernet cable tester / Network tester tool

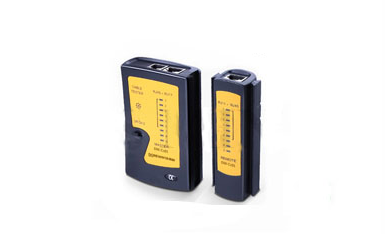

The RJ45 network cable tester can be used to test the network cable 8P8C and the telephone line 6P6C. It is a multi-functional network cable tester and can also test the shielded network cable. Split structure, easy to operate when integrated, and the two ends of the split can be aligned remotely.

Instructions:

1. Turn the power switch to the ON position to perform a fast scan test, S is the slow test gear, and the lights 1, 2, 3, 4, 5, 6, 7, 8, and G of the main tester flash in sequence, which proves that the machine into the normal working state.

2. Insert the terminal plugs to be tested into the corresponding ports of the main tester and the remote tester. If all the wire ends of the test line are good, the indicator lights of the main tester and remote tester will flash one by one from 1, 2, 3, 4, 5, 6, 7, 8, G; if the test is not shielded Wire, the G light of the remote machine will not flash.
