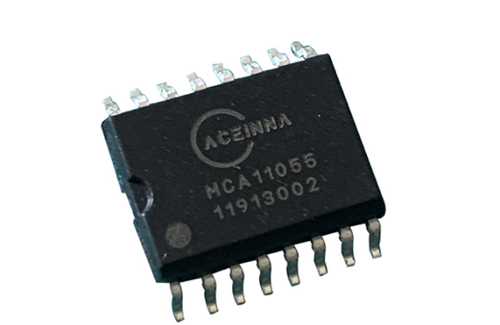

The MCA1101-5-5 is a ±5A fully integrated bidirectional analog output current sensor, silk screen marked MCA11055, which provides high accuracy and bandwidth; it uses the most advanced anisotropic magnetoresistive (AMR) sensor technology with inherently low noise, excellent linearity, and repeatability. High bandwidth of 1.5MHz (3dB) and low phase delay makes it ideal for current sense feedback in motor control, inverters, uninterruptible power supplies, battery management, power factor correction, high voltage power distribution bus converters, and power applications circuit.

Feature:

• AMR-based integrated current sensor

• Excellent range and accuracy

• Excellent frequency response 1.5 MHz (3dB BW typical)

• Fast output response time (300ns typical).

• Low primary resistance (0.9 mΩ)

• Single 5V supply operation

• Low power consumption (6.5mA typical)

• Zero current reference pin (Vref)

• Overcurrent fault detection

• SOIC-16 package (RoHS/REACH compliant)

• -40 to +105°C operating temperature range

Application:

• Server, telecom, and industrial PWR supplies

• Motor control loops and protection

• Solar inverters and optimizers
