Antminer hashboard EEPROM code editor for not hashing,0 hash rate,hashboard not working, chain has 0 ASIC, no red light after Antminer hashboard replacement.

When the Antminer hashboard is not working and there is no hash, we can use the Antminer hashboard eeprom code editor to solve this problem. How to use the Hashboard code editor? The principle of this device is to synchronize the hashboards with different serial numbers inside the miners to make them the same as the other two hashboards, so that the miners can start and work normally. This code editor is suitable for Antminer S9SE S9k S11 S15 T15 S17 S17 + S17pro S17e S17+ T17 T17e S19 S19pro S19Jpro and other subsequent models of hashboard repair and synchronization problems. Our method is to read one of them and save the data, and then write the data to the other hashboards. After rigorous testing, this method is fast and effective.

Antminer hashboard code editor is used to read, save and synchronize the hashboard EEPROM chip data, the hashboard must maintain the same EEPROM data to be recognized by the control board. If the EEPROM chip data of the hashboard in the same miner is inconsistent, the miner will not be able to start.

Notice:

This device has different versions, namely AT24C02 and AT24C01. Their functions are the same, and please use them directly. Antminer hashboard code editor has program files in the SD card, it is forbidden to change or copy the internal settings, otherwise the equipment may become unusable. If the editor is damaged by changing the program in the SD/TF card, we will not provide after-sales service.

When using this device, please disconnect the hashboard, power supply, and other connections.

It is forbidden to connect to the computer when use the hashboard code editor to synchronizes the hashboard data.

Equipment voltage:  5V 1-2A

Applicable models:  Antminer S9SE  S9k  S11  S15  T15  S17  S17+  S17pro  S17e  S17plus  T17  T17e  S19   S19pro S19Jpro and other subsequent models.

Working mode:  RW simulation program

Power supply:  USB power supply

Scope of application:  fix the failure of the miners to start abnormally due to the mixed use of hashboards or the sweep of the test fixture.

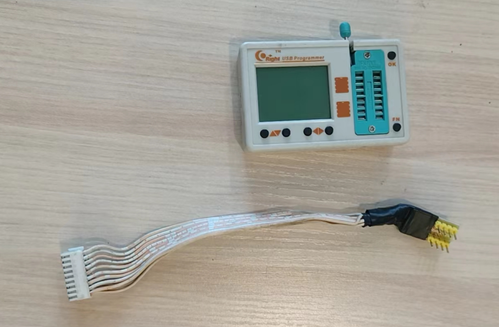

① - "OK" confirmation key

② - "FN" function key

③ - Up button

④ - Down button

⑤ - Left button

⑥ - Right button

⑦ - USB power interface (5V 1-2A)

⑧ - Hashboard data interface

Sometimes when we use the hashboard from different miners in one, or after using the test fixture to test, the miner probably can't start working, it's because the code in the hashboard is not unified, we need special equipment to refresh the code, the machine can restart work.

Note: This problem doesn't hardware damage, but because the Hashboard code is not uniform, This special code has been written into the hashboard at the factory, and this problem probably occurs when repairing S9SE  S9k  S11  S15  T15  S17  S17+  S17pro  S17e  S17plus  T17  T17e  S19   S19pro  S19Jpro and other subsequent models.

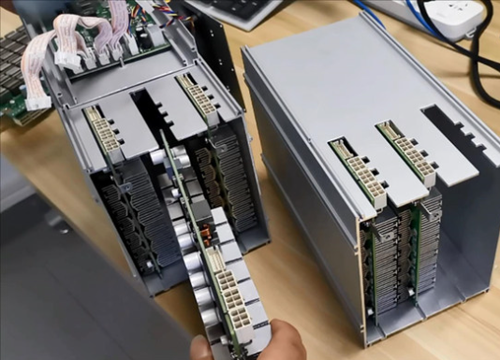

When we mix the hashboard from two different Antminer s9se miners.

The miner can't recognize the new hashboard, it will causing the miner can't start and not working.

Now we use this special code editor, to edit the code to make it the same as other hashboards in order to work properly.

First, we need to read the data of one of the hashboards, and save it in the device.

Then, write the newly added hashboard to the same code.

Now. their internal code is consistent,The miner can be mining again now.

Note: According to our statistics, about 62% of miners will experience this problem after repairing or changing the hashboard but not 100% happen.

Watch the video about the operation via https://www.youtube.com/@minerfixes/search?query=code%20editor

If you have any questions that you don’t understand during use, please consult our account manager.
