SGM2036-1.8YN5G/TR

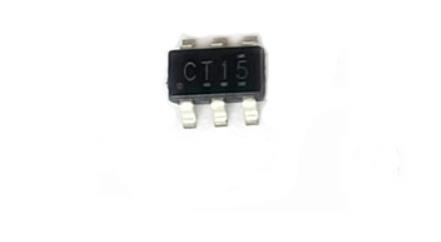

The SGM2036 is a low noise, low voltage, and low dropout voltage linear regulator. ZEUS MINING hot selling SP7KC voltage regulator is 1.8V, it can be used for Antminer S19 series and T17 series hash boards, it can provide 300mA output current, and the typical dropout voltage is only 165mV.

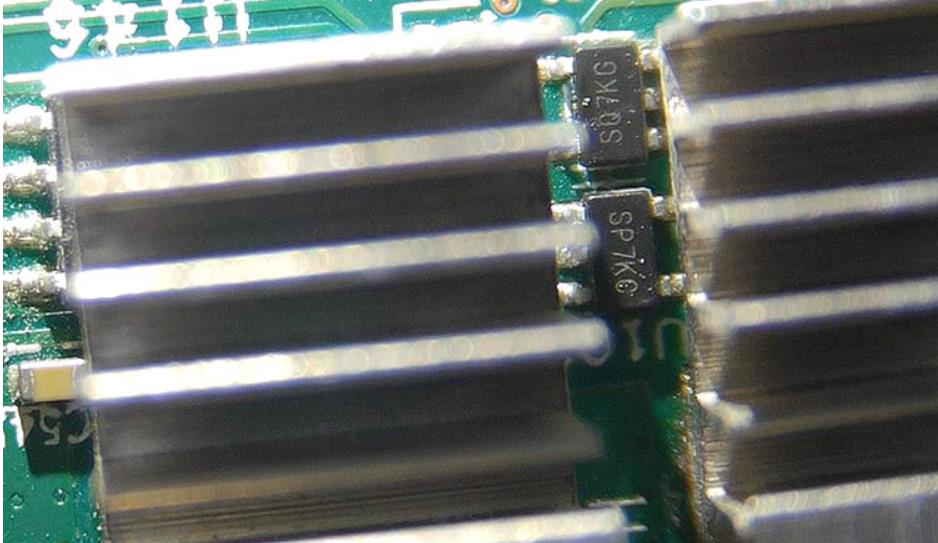

The silk screen printing of the same chip production batch will be different.

Product parameters:

The operating input voltage range is 1.6V to 5.5V.

The output voltage range is 0.8V to 5.0V.

Output current: 300mA

Output voltage accuracy: ±2.5% at +25 ℃

Other features include logic-controlled shutdown mode, short-circuit current limit, and thermal shutdown protection.

The SGM2036 features an auto-discharge feature that quickly discharges V OUT in the disabled state.

Its operating temperature range is -40°C to +85°C.
